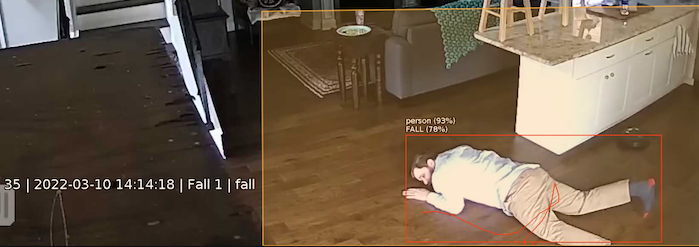

The fall rule detects when a object classified as a Person, by the Deep Learning People Tracker, is in the fallen state.
When the Fall rule is added to a channel configuration, the fall detection algorithm begins to run in the background which will have a GPU overhead. Currently this rule is only available when using the Deep Learning People Tracker.
Graphical View
Form View

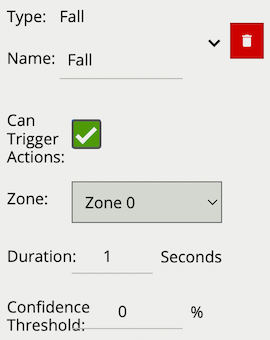

Configuration
|
Property |
Description |
Default Value |
|---|---|---|
|
Name |
A user-specified name for this rule |
“Fall #” |
|
Zone |
The zone this rule is associated with |
None |
|
Duration |
Period of time a object must have been fallen before the rule triggers |
1 to 60 seconds |
|
Confidence Threshold |
The algorithm confidence (as a percentage) required to trigger the rule |
0 |
|
Can Trigger Actions |
The algorithm confidence (as a percentage) required to trigger the rule |
Active |
