The tailgating rule detects objects which cross through a zone or over a line within quick succession of each other.

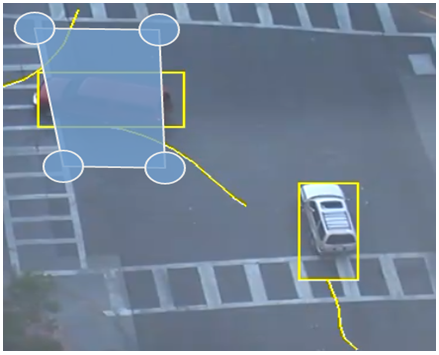

In this example, object 1 is about to cross a detection line. Another object (object 2) is following closely behind.
The tailgating detection threshold is set to 5 seconds.
That is, any object crossing the line within 5 seconds of an object having already crossed the line will trigger the object tailgating rule.

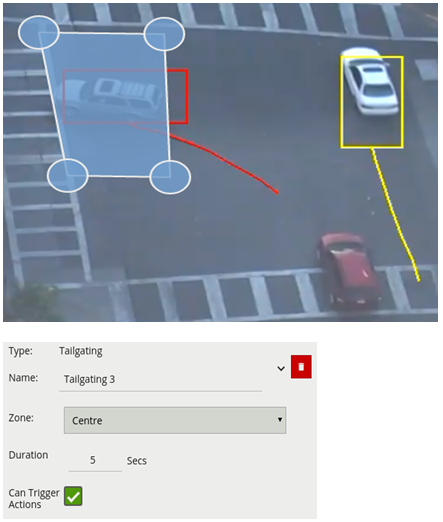

Object 2 crosses the line within 5 seconds of object 1. This triggers the tailgating filter and raises an event.
|
Property |
Description |
Default Value |
|
Name |
A user-specified name for this rule |
"Tailgating #" |
|
Zone |
The zone this rule is associated with |
None |
|
Duration |
The maximum amount of time between first and second object entering a zone to trigger the rule |
0 |
|
Can Trigger Actions |
Specifies whether events generated by this rule trigger actions |
Active |
