Axis metadata integration

Axis metadata integration to Mirasys VMS can be done via Text Channel. License include this option already, there is only configuration needed to do.

Requirements

  • Latest Mirasys VMS

  • Axis camera where is configured data send to the desired IP address and port

Configuration

  • Copy Axis UDD file to DVR folder

  • Open System Manager and log in there using Administrator user rights

  • Go to the Serves tab and open Text Channels

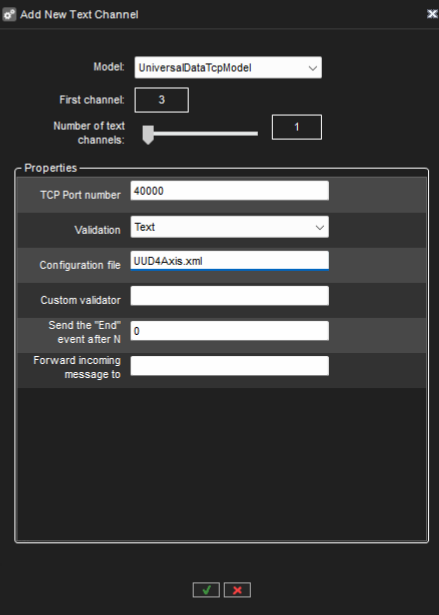

  • Make their new Text Channel

    • Model: UniversalDataTcpModel

    • TCP Port number: 40000 or the next free one

    • Validation: Text, this depends type of data

    • Configuration file: UUD4Axis.xml

    • Custom validator: Empty

    • Send the “End” event after N: 0

    • Forward incoming message to: empty


  • Now you can save these settings and check via Spotter that Text Channel is working and you can see data from camera.

    • If you are using a different profile on the Spotter side, please add this Text Channel to the wanted profile; without this, you can’t see this Text Channel on Spotter.

  • When everything is working and you can see data on Text Channel you can use System Manager to do alarms based on camera metadata events.

Troubleshooting

  • No data in Text Channel

    • Check the configuration and test that the camera is working as normal on the VMS side.

  • Event missing

    • If there is event missing, you can add this to XML file and then restart services to reload this new file.

Example UUD4AxisASCII.xml file

XML
<?xml version="1.0" encoding="UTF-8"?>
<root>
<logging>
  <level value="2"/>
  <additionalDebug value="no"/>
</logging>
  <channelConfig>
    <linefeed value="0x0a"/>
    <ignored value="0x05,0x00"/>
    <clearscreen value="-----"/>
  </channelConfig>
  <validation>
    <regex value="[a-zA-Z0-9[:space:]\\:]*" />
  </validation>
  <uddXmlMapper version="2">
    <messageType value="text" parsing="regex">
      <message number="1" value="alarm">
		<param number="1" value="([a-zA-Z0-9[:space:]\\:]+)" group="1"/>
	  </message>
    </messageType>
	<constants>
		<array name="Events" params="Axis">
            <value>TEST</value>
            <value>Trigger</value>
        </array>
    </constants>
    <rules>
		<message number="1" value="alarm" alwaysShowText="yes">
            <param number="1" reference="1" operator="eq" value="$Events" id="Axis">
				    <action number="1" type="event" value="$Events alarm" />
            </param>
		</message>
  </rules>
  </uddXmlMapper>
</root>

Example UDD4AxisMD.xml file

XML
<?xml version="1.0" encoding="UTF-8"?>
<root>
<!--Axis Motion Detection 4 UDD file-->
<!--Configure camera sending data via TCP to VMS server IP and Port-->
<logging>
  <level value="2"/>
  <additionalDebug value="no"/>
</logging>
  <channelConfig>
    <linefeed value="0x0a"/>
    <ignored value="0x05,0x00"/>
    <clearscreen value="-----"/>
  </channelConfig>
  <validation>
    <regex value="[a-zA-Z0-9[:space:]\\:]*" />
  </validation>
  <uddXmlMapper version="2">
    <messageType value="text" parsing="regex">
      <message number="1" value="alarm">
		<param number="1" value="([a-zA-Z0-9[:space:]]+)" group="1"/>
	  </message>
    </messageType>
	<constants>
		<array name="Events" params="AxisMD">
		<value>Camera 1 Intrusion Zone 1</value>
		<value>Camera 1 Intrusion Zone 2</value>
		<value>Camera 2 Intrusion Zone 1</value>
		<value>Camera 2 Intrusion Zone 2</value>
		<value>Camera 3 Intrusion Zone 1</value>
		<value>Camera 3 Intrusion Zone 2</value>
		<value>Camera 4 Intrusion Zone 1</value>
		<value>Camera 4 Intrusion Zone 2</value>
        </array>
    </constants>
    <rules>
		<message number="1" value="alarm" alwaysShowText="yes">
            <param number="1" reference="1" operator="eq" value="$Events" id="AxisMD">
				    <action number="1" type="event" value="$Events alarm" />
            </param>
		</message>
  </rules>
  </uddXmlMapper>
</root>
