Magos Radar

Magos Radar System integration to Mirasys VMS can be done via Text Channel. License include this option already, there is only configuration needed to do.

Requirements

• Latest Mirasys VMS

• Magor Radar System where is configured data sending to wanted IP-address and port

  • Magos Radar System had own license feature for metadata sending

Configuration

• Copy Magos Radar UDD file to DVR-folder

• Open System Manager and logon there using Administrator user rights

• Go to Serves tab and open Text Channels

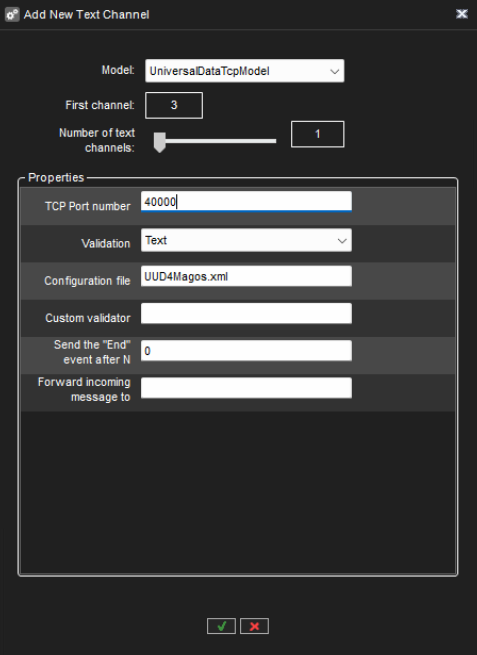

• Make there new Text Channel

  • Mode; UniversalDataTcpModel

  • TCP Port number; 40000 or next free one

  • Validation; Text, this depends type of data

  • Configuration file; UUD4Magos.xml

  • Custom validator; Empty

  • Send the “End” event after N; 0

  • Forward incoming message to; empty



• Now you can save these settings and check via Spotter that Text Channel is working and you can see data from Magos Radar System.

  • If you are using different profile on Spotter side, please add this Text Channel to wanted profile, without this you can’t see this Text Channel on Spotter

• When everything is working and you can see data on Text Channel you can use System Manager to do alarms based on Magos Radar System metadata events.

Troubleshooting

• No data in Text Channel

  • Check configuration and test that Magos Radar system is working as normal.

• Event missing

  • If there is event missing, you can add this to XML file and then restart services to reload this new file.

Example UDD4Magos.xml file

<?xml version="1.0" encoding="utf-8"?>
<root>
    <channelConfig>
        <linefeed value="0x0A" /> <!-- this is CR+LF, change to 0x0A if only LF is used as message delimiter -->
        <ignored value="0x00" />
        <clearscreen value="" />
    </channelConfig>
    <logging>
        <level value="2"/>
        <additionalDebug value="no"/> <!-- set to "yes" to get debugging files, like incoming messages into Debug_UDD_Packets.bin file located in DVMS/DVR-folder-->
    </logging>
    <validation>
        <regex value="ZoneAlarm.*" /> <!-- all incoming messages starting ZoneAlarm will be processed -->
    </validation>
    <uddXmlMapper version="2">
        <messageType value="text" parsing="regex">
            <message number="1" value="AlarmMessage">
                <param number="1" value="(.+)" group="1" /> <!-- event -->
            </message>
        </messageType>
         <constants>
            <array name="sevent" params="Alarms">
                <value>ZoneAlarm_Alarm_test</value>
				<value>ZoneAlarm_Area1</value>
				<value>ZoneAlarm_Area2</value>
			</array>
        </constants>
        <rules>
            <message number="1" value="AlarmMessage" alwaysShowText="yes"> <!-- change to "no", then only events will be shown -->
                <param number="1" reference="1" type="string" value="$sevent" operator="eq" id="Alarms" >
                    <action number="1" type="event" value="$sevent" />
                </param>
            </message>
        </rules>
    </uddXmlMapper>
</root>
