Axis one-click dispatcher settings
Installation steps
Install the O3C-server as described in the guide "AXIS O3C Server Reference. Windows and Linux Versions" (Technical Reference Document. AXIS One-Click Cloud Connection Server 2.30.0), part 2.2.2.
Important things:
Install the O3C-server as described in the guide "AXIS O3C Server Reference. Windows and Linux Versions" (Technical Reference Document. AXIS One-Click Cloud Connection Server 2.30.0), part 2.2.2.
Important things:
setup provider certificate authority:
Directory in which the CA should be set up [default: ca]: (by default ca)
Passphrase for the CA key (DO NOT FORGET THIS!) [default: N/A]: pAs_sw!ord (some password)
Valid time, in days [default: 7300]: 100 (any number)
Issue a server certificate:
Path to the CA directory [default: ca]: (as above)
Passphrase for the CA key [default: N/A]: pAs_sw!ord (as above)
Subject Alternative Names (separated by comma) [default: N/A]: 172.17.102.56 (very important!!! Should be equal IP address of O3C server)
Valid time, in days [default: 398]: 100 (as above)
Result:
Concatenated server certificate and key saved to: ca/issued/stserver_EA363E5578E696E7.pem
Register O3C server as service in Windows SCM: there is needed the Power Shell tool for Windows! And for install call:
.\setup_service.ps1 add -c C:\o3c-server\o3c-server.conf
Configure o3c-server.conf
listen_client = 172.17.102.56:80
IP and port where the server will wait for the client (the camera) connections
stserverid = test_o3c_server
Any string
cert_file = C:\o3c-server\stserver_EA363E5578E696E7.pem
issued server certificate created after command: "pkitool issue-server-cert"
provider_ca = C:\o3c-server\stserver_ca.crt
CA certificate from ca directory created after the command: "pkitool setup-provider-ca"
provider_name =
can be left blank
credentials = root:root
for device access requests
O3C-server service
By default, the service is called Axis O3C Server in Services or O3C-server in command prompt.
Start the O3C-server service
Enable One-click technology on the camera as described in the 4.1 part of the guide.
Disable firewalls or add O3C-server to the exceptions
Register the camera as described in guide 4.2 part.
where:user=adp_mirasys_100, pass=GQ41lSRbbEb4w3sorkN8 - Mirasys credentials (Provider name and password) from Axismac=B8A44F17AAFA, oak=8A22D6434817 - MAC address and OAK key from the camera
To find the MAC address using the following string in the browser: http://172.17.100.84/axis-cgi/admin/param.cgi?action=list&group=Network
server=172.17.102.56:80 - as "listen_client" in o3c-server.conf
Check that the camera was connected to the O3C-server: call in the browser th string: http://172.17.102.56:80/admin/status.cgi 172.17.102.56 - IP address of O3C-server
And check that there is a comment about the connected client as follows: "id=4.b8a44f17aafa srcaddr=172.17.100.84:34148 accepted=1 v=2 rx=0 tx=0 connected=2022-01-10T12:45:40.875571Z
Total number of clients: 1"
PS: the camera tries to connect to the server every 20 seconds
Check that we can get options from the camera: for that, it needed to configure the proxy settings for browser -
Open system Internet Options
Select Connections tab -> Select LAN settings button -> to enable "Use a proxy server for LAN (...)" and input the proxy IP address and port. (in the current case there is a local IP address and port 80)
After that we can get the camera capabilities in the browser:
http://b8a44f17aafa/axis-cgi/param.cgi?action=list&group=root.RemoteService where b8a44f17aafa - MAC address of the camera
Filter for wireshark for Axis P1375:
((ip.src == 172.17.100.84) && (ip.dst == 172.17.102.56)) || ((ip.src == 172.17.102.56) && (ip.dst == 172.17.100.84))
Add Axis One-Click Camera
Open System tab

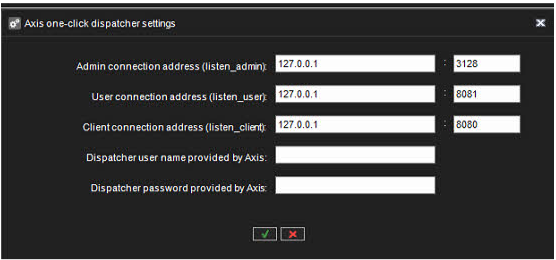

Go to System Settings and open Axis one-click dispatcher settings
Enter all necessary details and click OK
4. Open the VMS Servers tab
5. Click Hardware

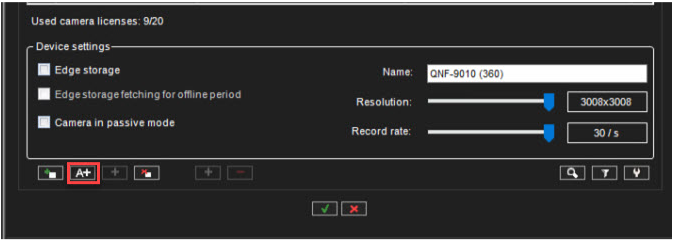

6. Click Add Axis One-Click Camera icon
![](../../__attachments/2064319759/image-20230620-122738.png?inst-v=943405ef-7ab7-4fb7-b496-73a9b2ab733e)

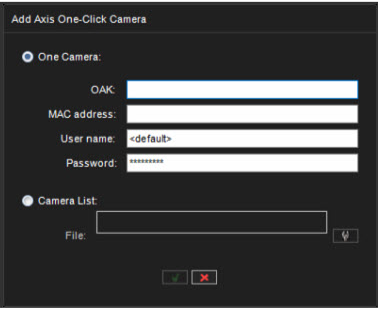

7. Enter Axis One-Click Camera details and click OK
![](../../__attachments/2064319759/image-20230620-122747.png?inst-v=943405ef-7ab7-4fb7-b496-73a9b2ab733e)

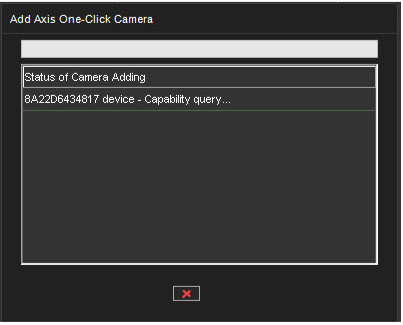

After clicking the OK, the camera query starts
![](../../__attachments/2064319759/image-20230620-122759.png?inst-v=943405ef-7ab7-4fb7-b496-73a9b2ab733e)

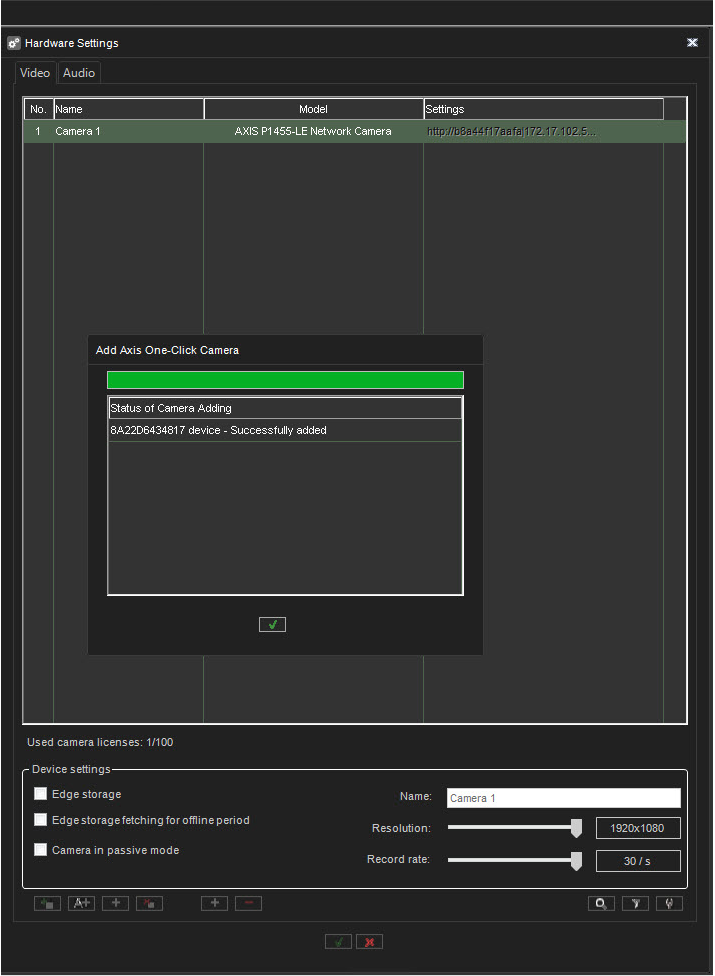

When the camera query is finished, the device will be added to the hardware list
8. Click OK to finalize
![](../../__attachments/2064319759/image-20230620-122817.png?inst-v=943405ef-7ab7-4fb7-b496-73a9b2ab733e)
