Mirasys VMS V9.2 release notes
What’s new?
PTZ camera groups for all home position
In Spotter there is the possibility to run all profile PTZ cameras to home if the user has the Spotter user role. This operation can be done from UI (Devices ribbon), shortcut and from the input device.
Bookmark improvements
User rights
Following new user Spotter roles were added:
Possibility to run all current profile dome cameras to their home positions (if camera dome profile setting flag: IsDomeTakeControlAllowed, is set).
Role can set in Spotter roles -> Devices -> Dome cameras. Default value is false.

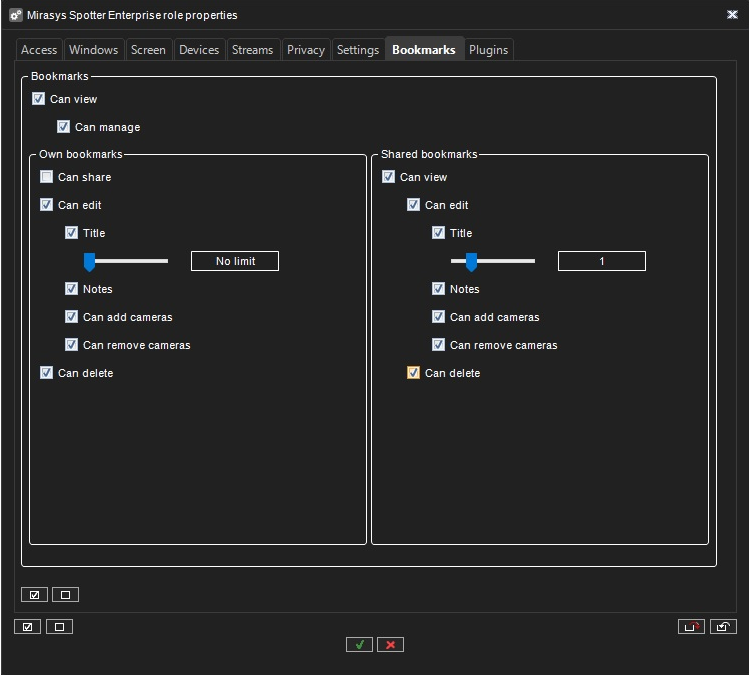

New bookmarks editing and managing roles:
Bookmarks handling improvements
Password protect

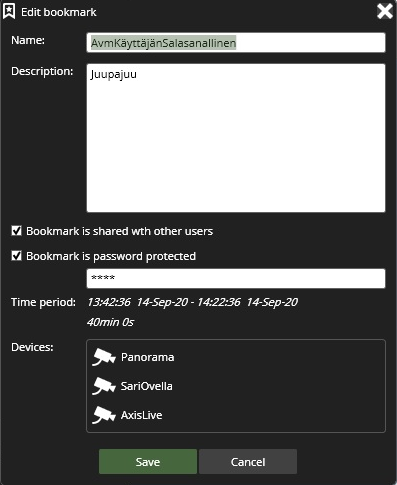

When saving a shared bookmark, password protection is possible to add in the bookmark.

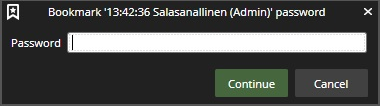

When opening for viewing shared, password-protected, bookmark first time under session (or after settings changed refresh) password is asked.
Multi-select for bookmarks

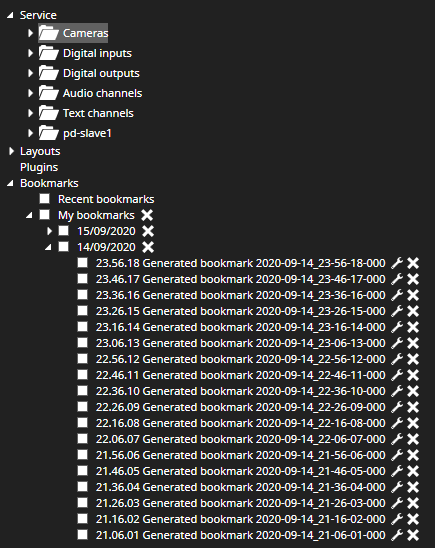

It is now possible to select multiple bookmarks for operations:
Add bookmark to storyboard
Bookmarks can now easily be exported to a Storyboard:

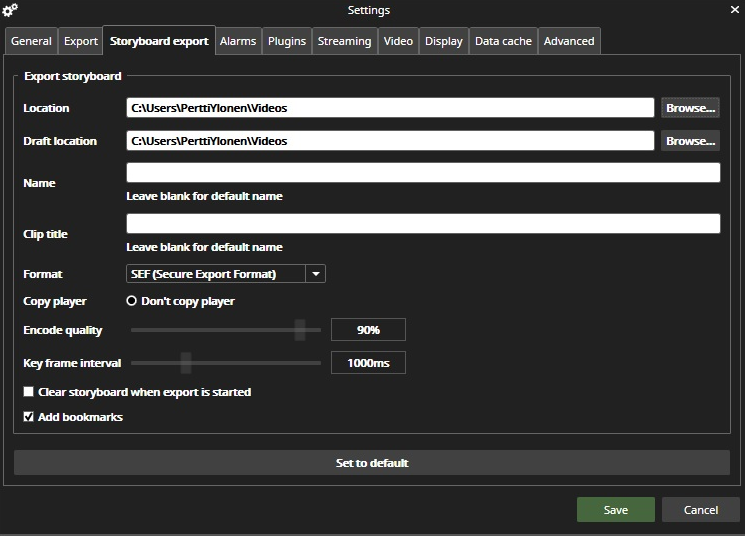

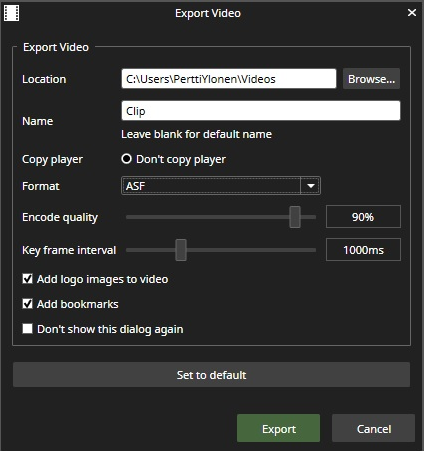

Add or exclude bookmarks from export
By default, bookmarks are included in exported clips
Clip reuse in Storyboard
It is possible to import media clips to the storyboard
Supported media file formats are: .sef, .sef2, .esef
If the imported media file is password protected, then the password is asked during import
Imported media clips are added to the end of the storyboard, and the storyboard description is replaced with the imported storyboard clip description (if it is not empty)
Bookmarks are imported too from the media clip
Imported media clips can be edited in the storyboard, and exported to a new storyboard clip
Imported media clips are included also in storyboard draft files
The storyboard preview window can show also imported clips. A storyboard cannot be edited while the preview window is open.

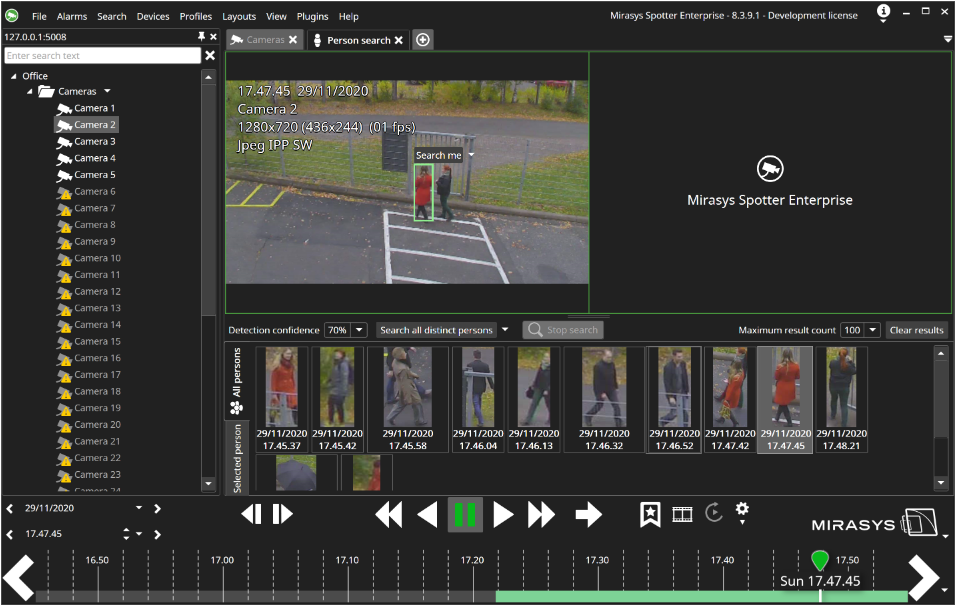

Spotter person search plugin (optional)
Description
There are three modes
Playback mode: all persons are detected (this is the default mode)
Person search mode: the selected person is searched from played videos
All persons search mode: search all persons, try to display the same person only once
Thumbnails
Found persons are shown in a thumbnail list. There are separate lists for all persons and selected person search results.
Thumbnail mouse click (or Enter key) shows the thumbnail location in the video
Thumbnail mouse double click opens the thumbnail video playback in the new tab
Known limitations
The current version does not allow using other plugins with the person search plugin. This means that the following features are unavailable:
Zooming
Auto crop
360 image de-warping
VCA engine update
Find full documentation in our V9.2 - VCA Installation and Configuration Guide
V9.2 has an updated VCA engine. It is strongly recommended to perform a settings backup before the update and restore the backup after the update.
In rare cases, we experienced VCA license problems. Please contact support for further information.
Alarm, audit trail and watchdog event database retention times
It is now possible to configure the retention time of the events in the alarm, audit trail and watchdog database.
This can be configured in the Database.xml configuration file.
V7 file system support
DVMS V9 has a new file system format that is incompatible with V7 but to make it easier for customers V8310 and later versions have an option to work with V7 file system support.
DVMS installer

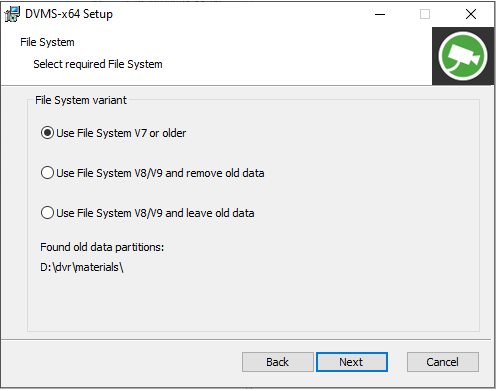

Filesystem support selection is done during DVMS install in this dialogue:
Use File System V7 or older - old storage will be used in V7 format without any changes to its structure, all calls to the V7 file system will be passed over new API -> old API wrapper. All previously recorded data (video, audio, text, alarms etc.) will be accessible after the DVMS update.
Use File System V8/V9 and remove old data - old storage will be erased and will be formatted to new File System format, all previously recorded data will be lost.
Use File System V8/V9 and leave old data - old storage will be left as is, but DVMS will be configured to use the new File System format. This is useful if there is some additional disk that can be used for new data and there is some need to keep old storage for some time to access previously recorded data. Previous data can be opened as an archive in Spotter, the installer will create archive information if this option will be selected in the installer.
Notes for installer option 3 (Use File System V8/V9 and leave old data)
If there were several disks used in DVMS V7 then each disk will be opened as a separate archive in V8 or later after the DVMS update.
DVMS V7 has a recording mechanism similar to RAID 0 (stripe recording) but in this case, it writes 1st second to one disk, 2nd - to another, so as a result if each disk is opened separately it will have gaps in places where those data is written to another disk.
If text channels are used in V7 then to generate archive information correctly DVMS V8 or later should be installed on top of V7 (without V7 uninstall).
If V7 will be uninstalled first - text channel event names and search tags information will not be written to the archive information file.
Also if V7 will be removed with the "Remove settings" checkbox set then also channel names, manufacturer and other information will be lost, so archive information will be generic (like Camera 1, Audio 1 etc.)
Notes for alarm database

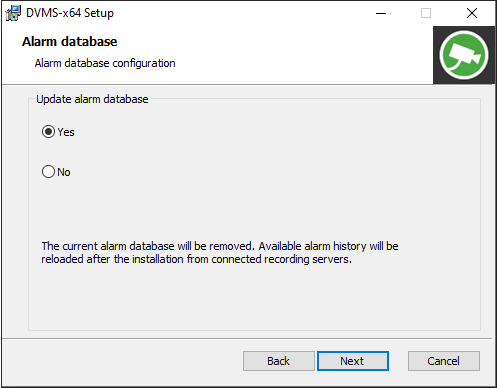

If V7 is updated to V8 then the alarm database is recommended to be removed, so the option "Yes" should be set to this installer dialogue:
If the SMServer alarm database is not updated, old alarm entries will remain in the alarm database in SMServer, but the alarm material stored on the recorder side is not available.
It is anyway highly recommended to update the alarm DB when upgrading to V8/V9.
Limitations
DVMS with V7 file system support has those limitations:
Can't launch several archiving processes at the same time, so if the timed archive was launched - the manual archive will fail until the first process will be finished.
If disk connection will be lost or disk will be unplugged and plugged again - it will not be recovered back until DVRServer restart.
Future file system features will not be supported
Support for Axis joystick jog wheel and keyboard

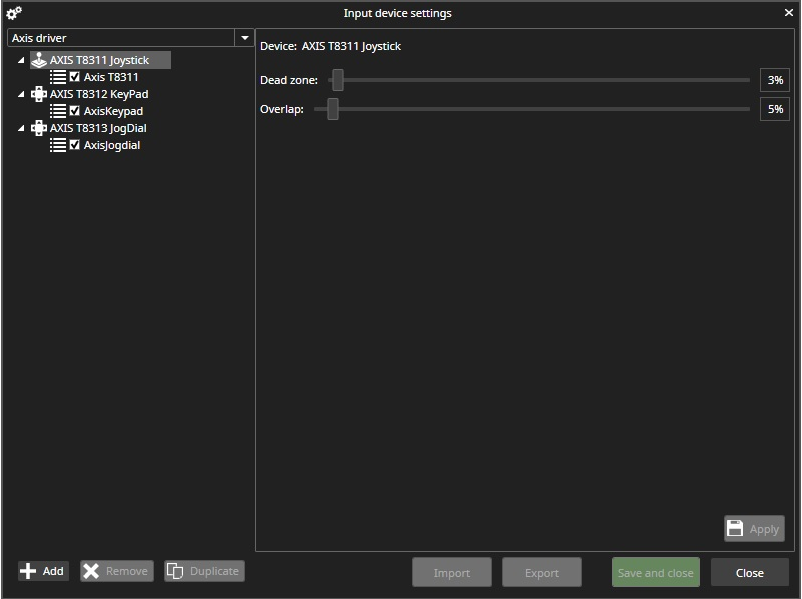

Axis device driver supports AXIS T8311 Joystick, AXIS T8312 Keypad and AXIS T8313 Jog Dial.
Online help link to Spotter and System Manager help
DVMS applications have a link to online help to Mirasys documentation and training platform.
Other minor changes
Better visualization for selected camera
Better visualization of bookmarks
Support for 1x1 fixed grid
Support for longer auto log off and lock times
Support for larger AVM setup (12x6 Display Servers)
Windows event logs included in the log export
Changelog V9.2 - 2021/03/31
Optimizations to failover and setting restore
Optimizations to VMS server thread usage
Optimizations and fixes to AVM usage
Fix: Motion search plugin improvement
Fix: Alarm email image generation
Fix: Spotter bookmark edit doesn't work correctly if DirectX drawing is used
Fix: Gateway image decoding issues
Fix: Support for all codecs in Gateway
Fix: Gateway playback skips images
Fix: Alarms not found from old master alarm database
Fix: Export user roles not set correctly in System Manager
Fix: Several fixes to Spotter layout loading
Fix: Old capture card settings handling in System Manager
Fix: PTZ tour as home position stops after a few minutes
Fix: VCA tampering event sent multiple times
Fix: Continuous recording causes 100% CPU load
Fix: Spotter crash when switching user
Fix: System Manager crash when saving storage settings
Fix: Joystick default setups works only in English Windows
Fix: Alarm popup works incorrectly with alarms that last only a short time
Fix: Spotter crash when saving Spotter settings
Fix: Spotter stuck when closing Spotter window
Fix: Spotter map images are updated only after Spotter restart
Fix: Several optimizations and fixes to Spotter camera carousel plugin
Fix: Spotter crash when closing camera audit plugin
Fix: Several fixes to small Spotter memory leaks
Fix: Get tab content failed from Spotter Pubic Web API
Fix: Old pre-recoding footage not removed correctly
Fix: Cannot use the digital output in Spotter grid
Fix: Edge storage not working correctly
Fix: Long prerecording not working for megapixel cameras
Fix: Spotter crash on storyboard draft save
Fix: Error loading VMS server settings System Manager
Fix: Creating a bookmark from the alarm in Spotter does not work correctly
New Hikvision driver
New Bosch driver
New Wisenet driver
New Mobotix driver
New Universal Data Driver
Other minor and cosmetic changes
