VM Desktop default setup (DirectX and AXIS)
VM Desktop default setup for DirectX devices and AXIS joystick
VM Desktop default setup
Device driver selection

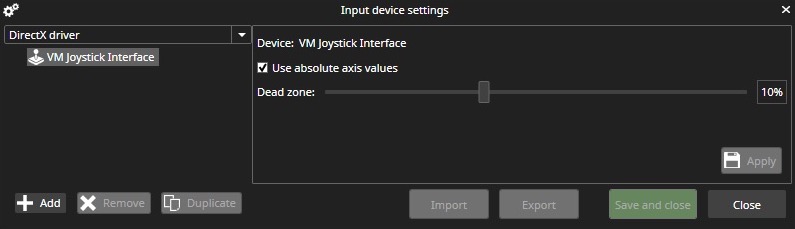

In the device driver setup page, only one driver is seen at a time, the default selected driver is the DirectX driver.

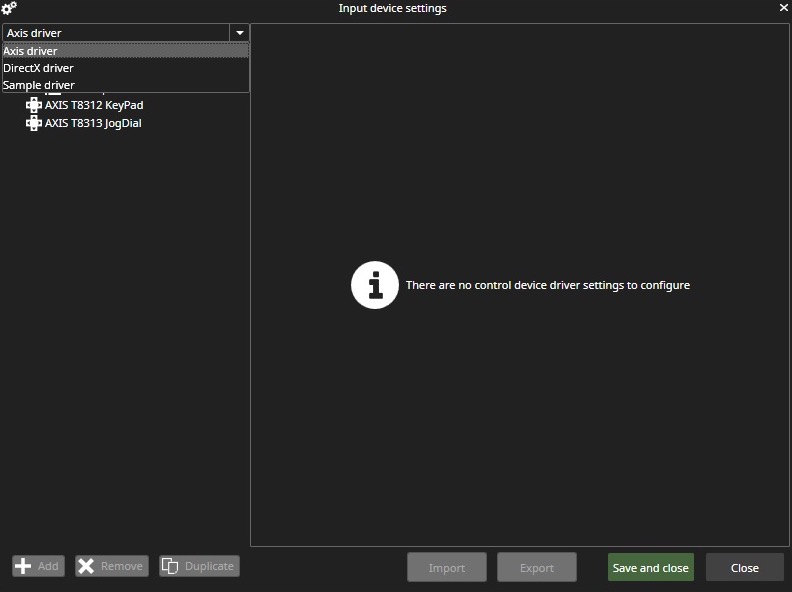

Used (= active) driver can select from combo box items:

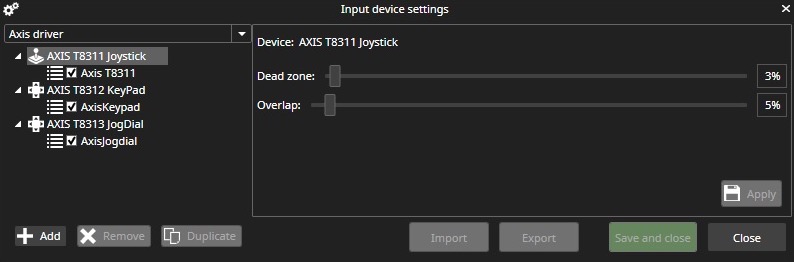

Axis device driver supports AXIS T8311 Joystick, AXIS T8312 Keypad, and AXIS T8313 Jogdial.
Note!
During Axis device driver test period, we detected a case (do not find out the reason) when Axis device driver was not viewing id driver selections and in Spotter.log there was an error message like: Exception in reading parameter information from installed control device driver
System.Reflection.TargetInvocationException: An exception has been thrown by the target of an invocation. ---> System.IO.FileNotFoundException: Retrieving the COM class factory for component with CLSID {7CC50CF7-AB83-4DF7-80A9-CA43FB554BBB} failed due to the following error: 8007007e The specified module could not be found. (Exception from HRESULT: 0x8007007E).
To solve this.
start the command prompt with administrator rights and go to the similar directory as: C:\Users\xxxx\AppData\Roaming\DVMS\spotter\9.3.0\127.0.0.1_5008\ControlDevices
run: REGSVR32 /U AxisJoystickModuleX64.dll and after that REGSVR32 AxisJoystickModuleX64.dll
Changes in VMS 9

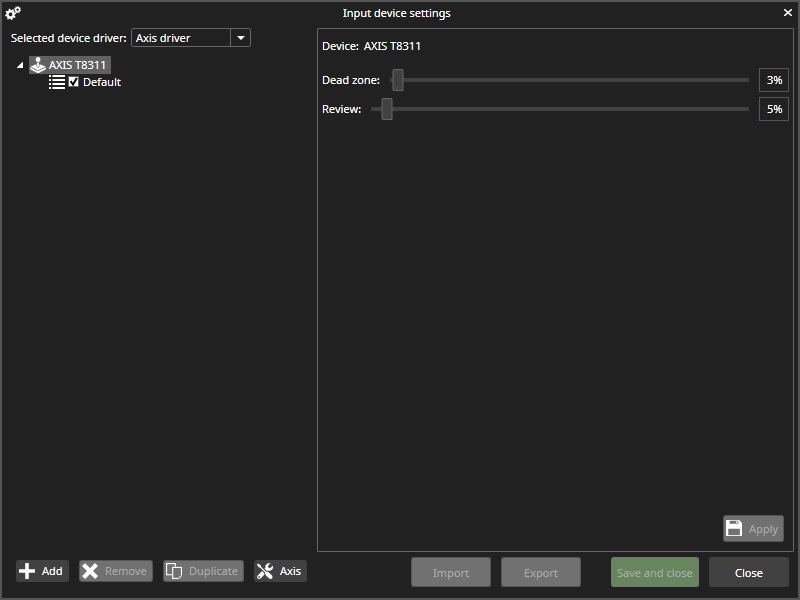

Automatic Axis device driver registration at Spotter start-up is removed, and a new Axis registration button is added in Input device settings.
Status of registration operation can see from status icon:
