VCA - Enter and exit
![](../../__attachments/2139882093/image-20230627-070552.png?inst-v=86834bbb-50d8-440d-9b6f-3431ba4b14c8)

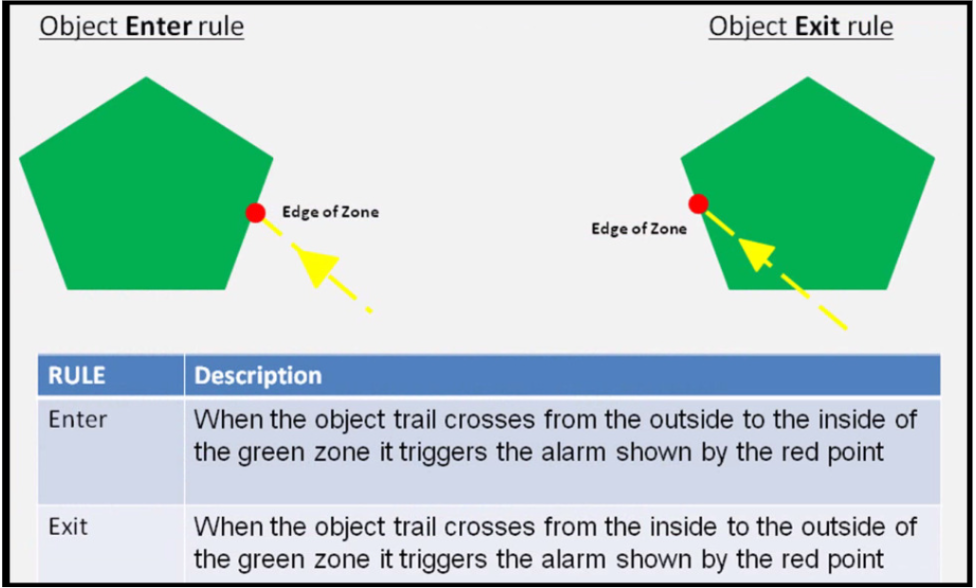

The enter rule detects when objects enter a zone.
In other words, when objects cross from the outside of a zone to the inside of a zone.
Conversely, the exit rule detects when an object leaves a zone: when it crosses the border of a zone from the inside to the outside.
Note: Enter and exit rules differ from appear and disappear rules, as follows:
Whereas the enter rule detects already-tracked objects crossing the zone border from outside to inside, the appear rule detects objects which start being tracked within a zone (e.g. appear in the scene through a door).
Whereas the exit rule detects already-tracked objects crossing the zone border from inside to outside, the disappear rule detects objects which stop being tracked within the zone (e.g. leave the scene through a door).
![](../../__attachments/2139882093/image-20230627-070606.png?inst-v=86834bbb-50d8-440d-9b6f-3431ba4b14c8)

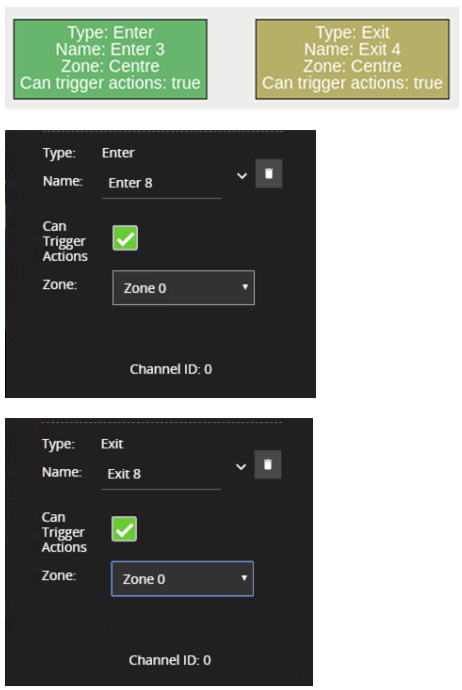

Configuration Enter
Property | Description | Default Value |
Name | A user-specified name for this rule | "Enter #" |
Can Trigger Actions | Specifies whether events generated by this rule trigger actions | Active |
Zone | The zone this rule is associated with | None |
Configuration Exit
Property | Description | Default Value |
Name | A user-specified name for this rule | "Exit #" |
Can Trigger Actions | Specifies whether events generated by this rule trigger actions | Active |
Zone | The zone this rule is associated with | None |
