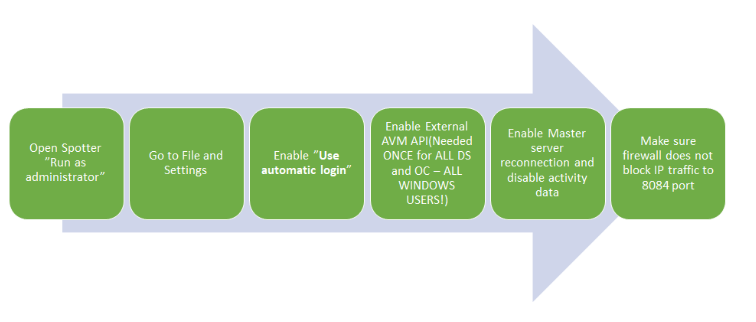

AVM DS Spotter configuration

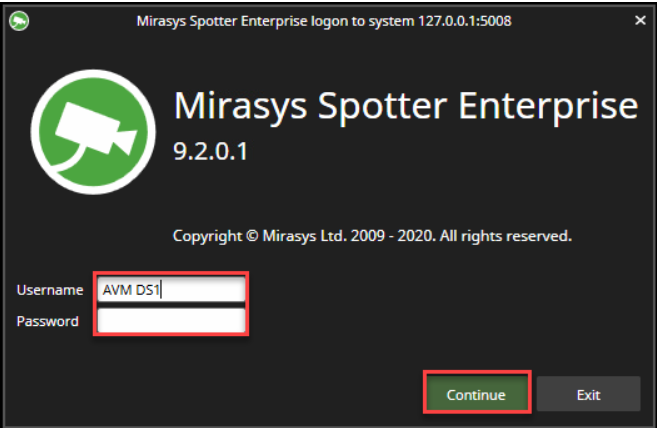

Log Each DS User In (Run as Administrator)

Use automatic login

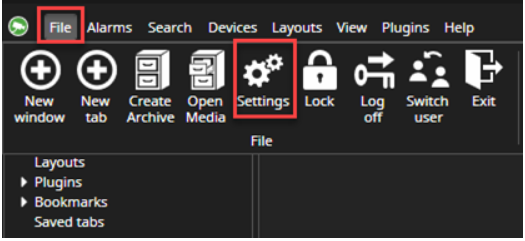

Open File
Click Settings

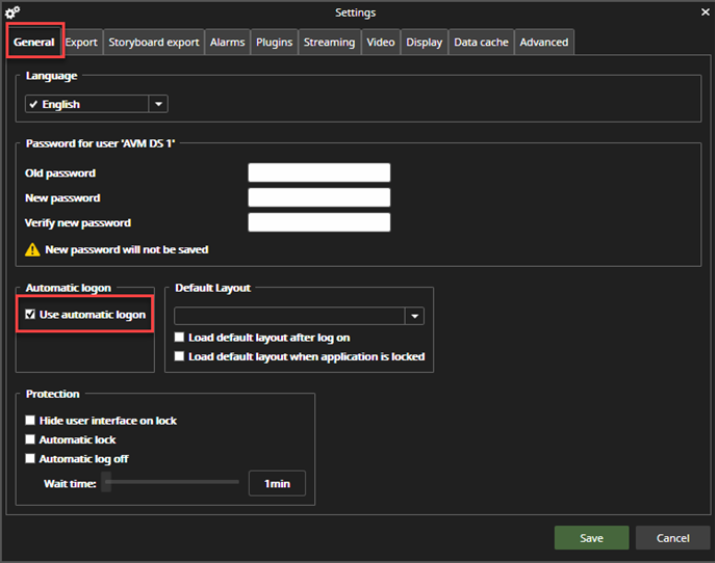

Select General
Enable Use automatic logon
Enable External AVM API (Needed ONCE for ALL DS and OC – ALL WINDOWS USERS!)

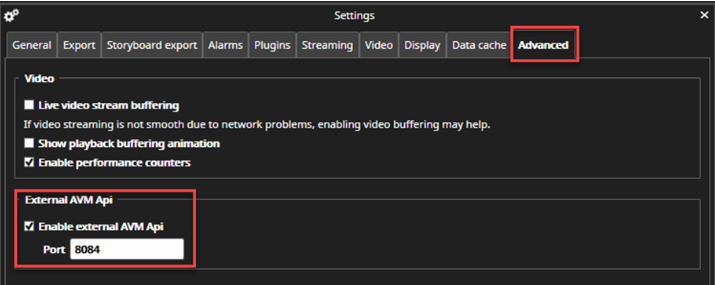

Go to the Advanced tab
Enable External AVM Api
If the default 8084 port is used (very rare case) you can change to another port (then has to change all machines to the same port)
Netstat -a
Allow traffic for configured AVM API port
Make sure the firewall does not block IP traffic to 8084 port!
Easiest is to disable the firewall (IN ALL MACHINES, OC AND DS, but you could also make a hole for 8084 (or another port if you need to use another port)
