AVM Troubleshooting

No connection to the AVM DS

  •  Spotter running and logged in at another end?

  •  IP address/monitor number correct in the setting?

  •  Firewall on?

  •  Ports 8084 / other opened at all OC/DS/all windows users

The maximum number of virtual displays in AVM Display Server reached

  • Solution: check the number of spotter windows in target DS. Close Unnecessary windows and try again

  • Check OC monitor configuration: do you have any weird IP address Monitor number

  • Check the DS monitor configuration. Do you have screens incorrect order and resolution, and upper edges aligned?

  • Is the monitor on and connected?

”Black images” or no images in AVM DS.

  • Do you have the correct profile selected?

  • AVM OC and AVM DS need to have the same profile

No images in the AVM OC

Do you have reference images in the VMS server camera settings?

An alternative way to automatically start Spotter on Windows startup

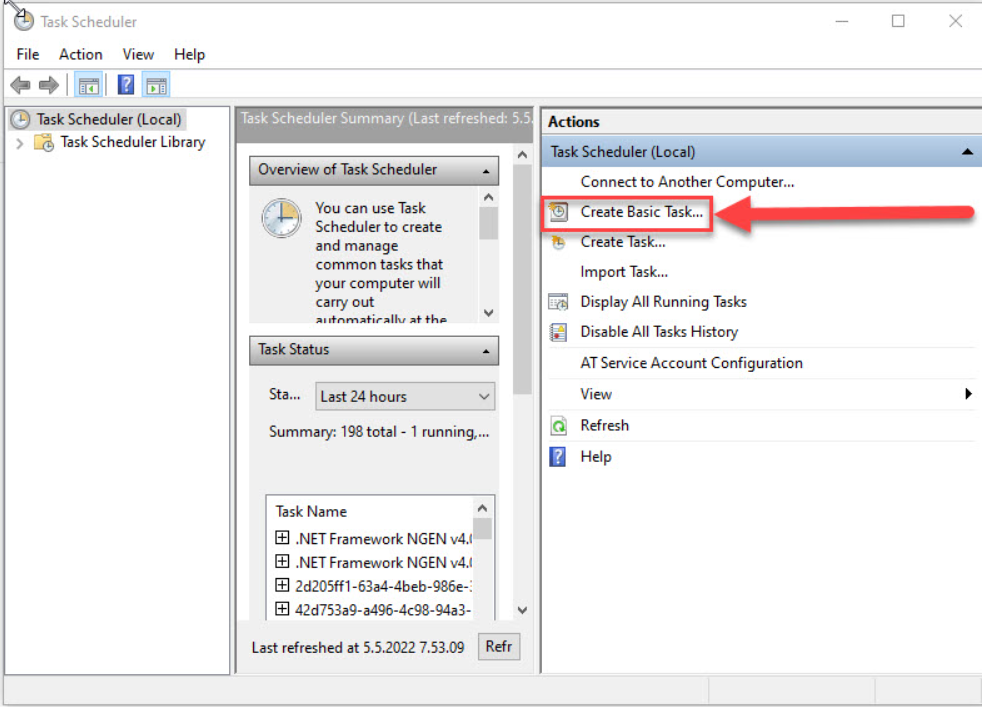

  1. Open Windows Task Scheduler

  2. Click Create Basic Task

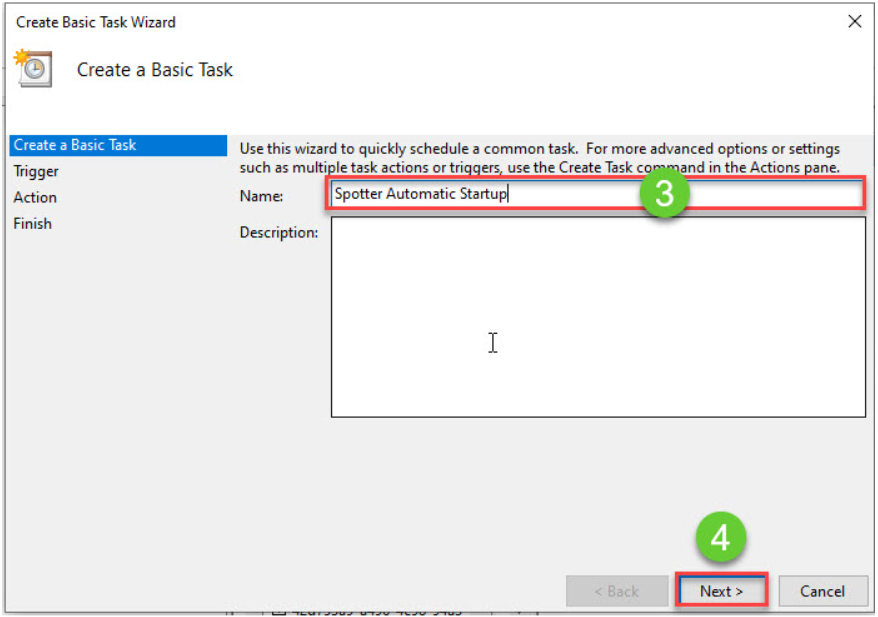

3. Enter the name of the task

4. Click Next

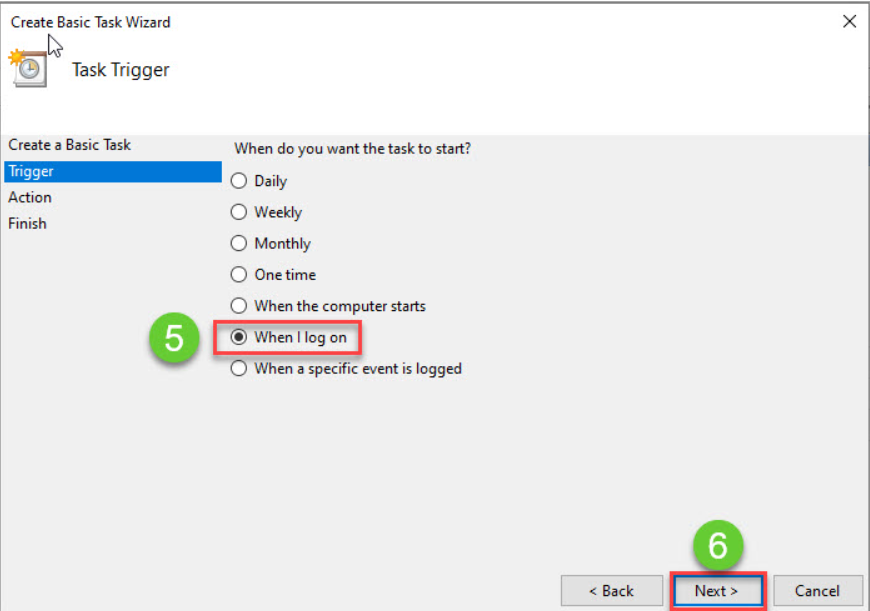

5. Select When I log on

6. Click Next

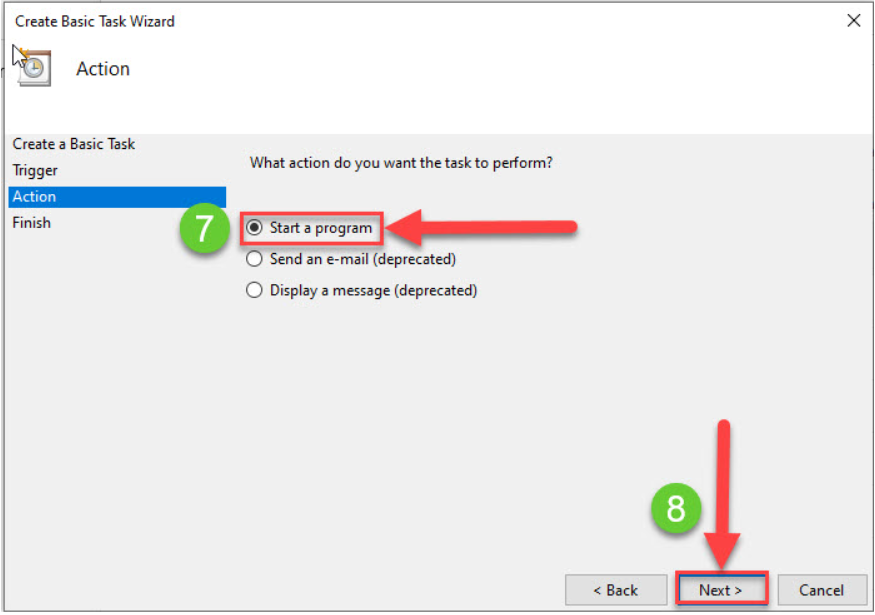

7. Select Start a program

8. Click Next


On default VAU.exe is installed under Program Files\DVMS\VAU

Change this patch is installation is done somewhere else

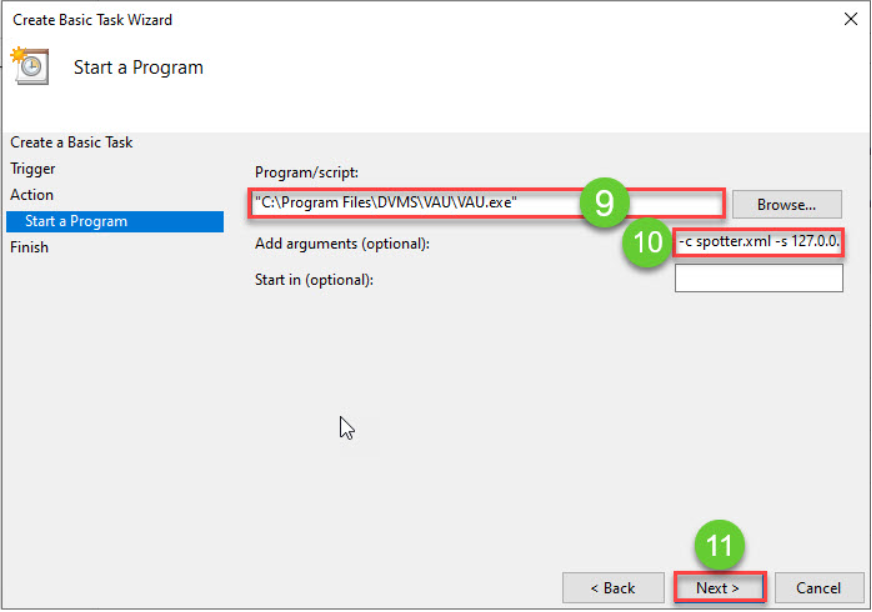

9. Browse the Spotter installation location and select VAU.exe

10. Enter -c spotter.xml -s 127.0.0.1 to the Add arguments(optional) field

11. Click Next

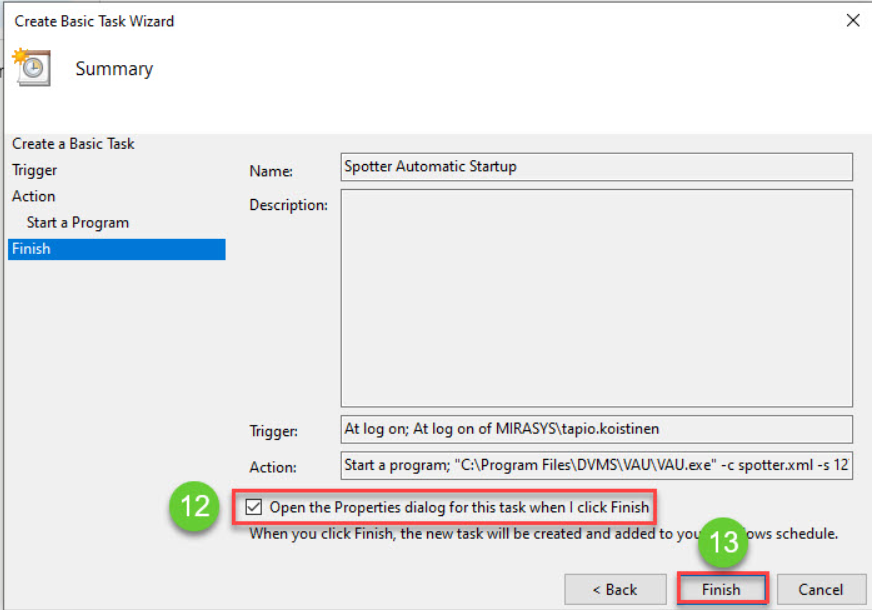

12. Enable Open the Properties dialog for this task when I click Finish

13. Click Finish

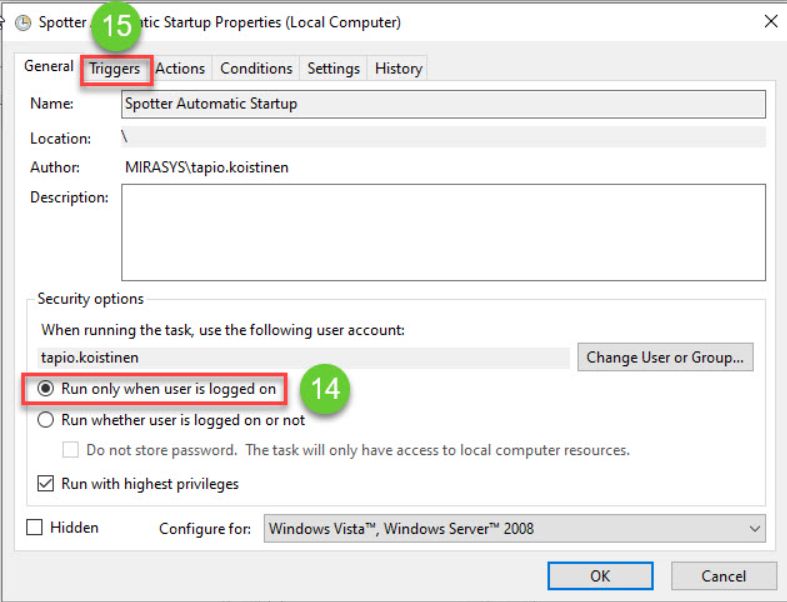

14. Enable Run only when user is logged on

15. Open Triggers tab

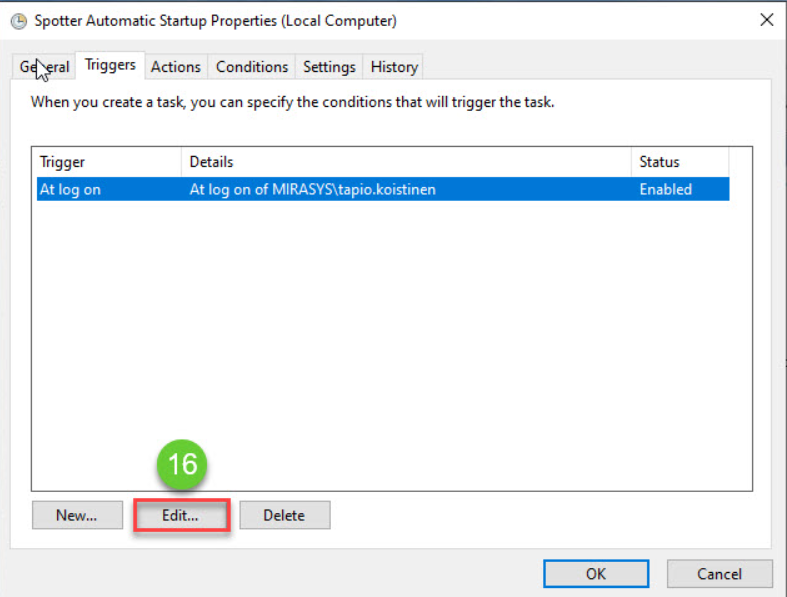

16. Click Edit

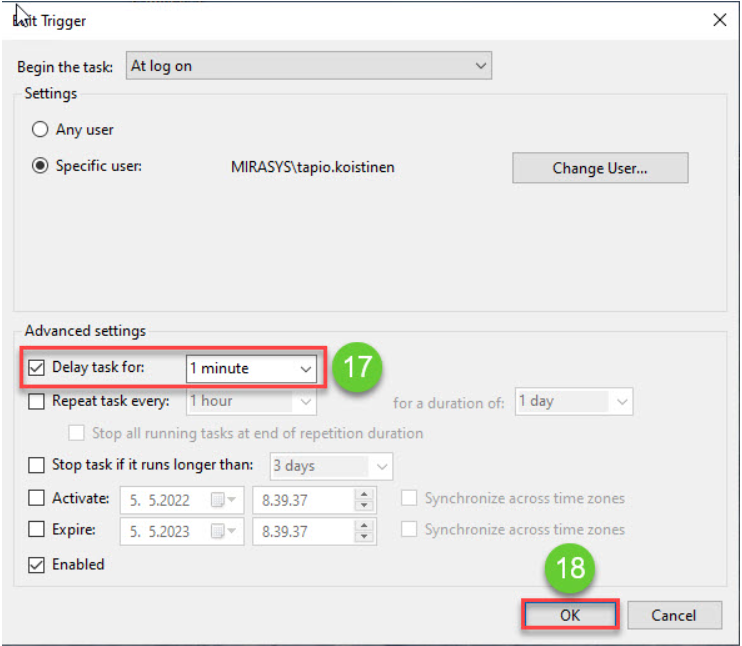

17. Enable Delay task for: and set value 1 minute

18. Click OK


Windows user automatic login

  1. Open Run command box

  2. Type netplwiz

  3. Select/click wanted user, example DVR

  4. Untick Users must enter a use name and password to use this computer

  5. You get prompt where to fill this user name password

  6. Now Windows login automatically in using this user
