RTSP Server Streaming

Supported from V9.5

RTSP/RTSPS server is used to stream video from the server to any third-party client that supports RTSP/RTSPS protocol.

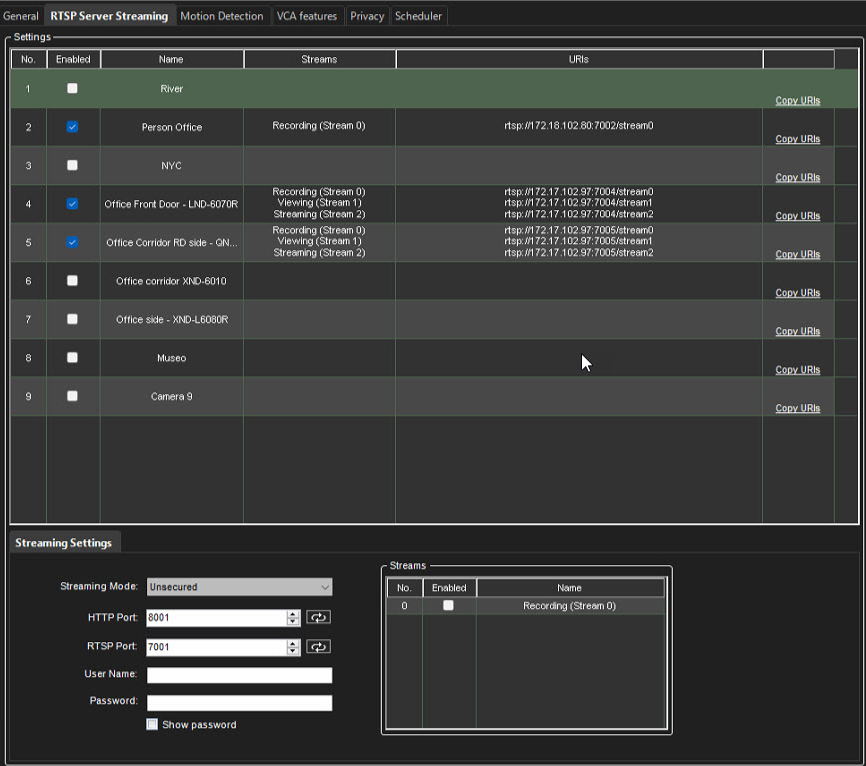

Settings

  • Camera number

  • Enabled/disabled check-box - allow user to enable/disable streams from specified camera without changing the settings

  • Camera name

  • List of configured streams

  • List of configured stream URIs

  • Copy URIs link - to copy to clipboard URIs for specified camera


Streaming Settings

  • Streaming mode - can be "Unsecured", Secured (UDP) and Secured (TCP). In secured mode instead of user name and password the certificate should be specified.

  • HTTP Port - port for HTTP connection. Ports should be unique for each camera. User can use the "Test port" button to check if selected port is already used in recorder side.

  • RTSP Port - port for RTSP connection. Ports should be unique for each camera. User can use the "Test port" button to check if selected port is already used in recorder side.

  • Enabled/disabled check-box - allow user to enable/disable streams from specified camera without changing the settings

  • User Name

  • Password

  • List of streams (multiple if multiple streaming is active) - each stream can be enabled/disabled separately

Enabling RTSP Server stream to the camera

  1. Check the Enabled box from the selected camera

  2. Select the line of the camera

  3. Set Streaming Mode, HTTP Port, RTSP Port, Username and Password

  4. Define used streams
