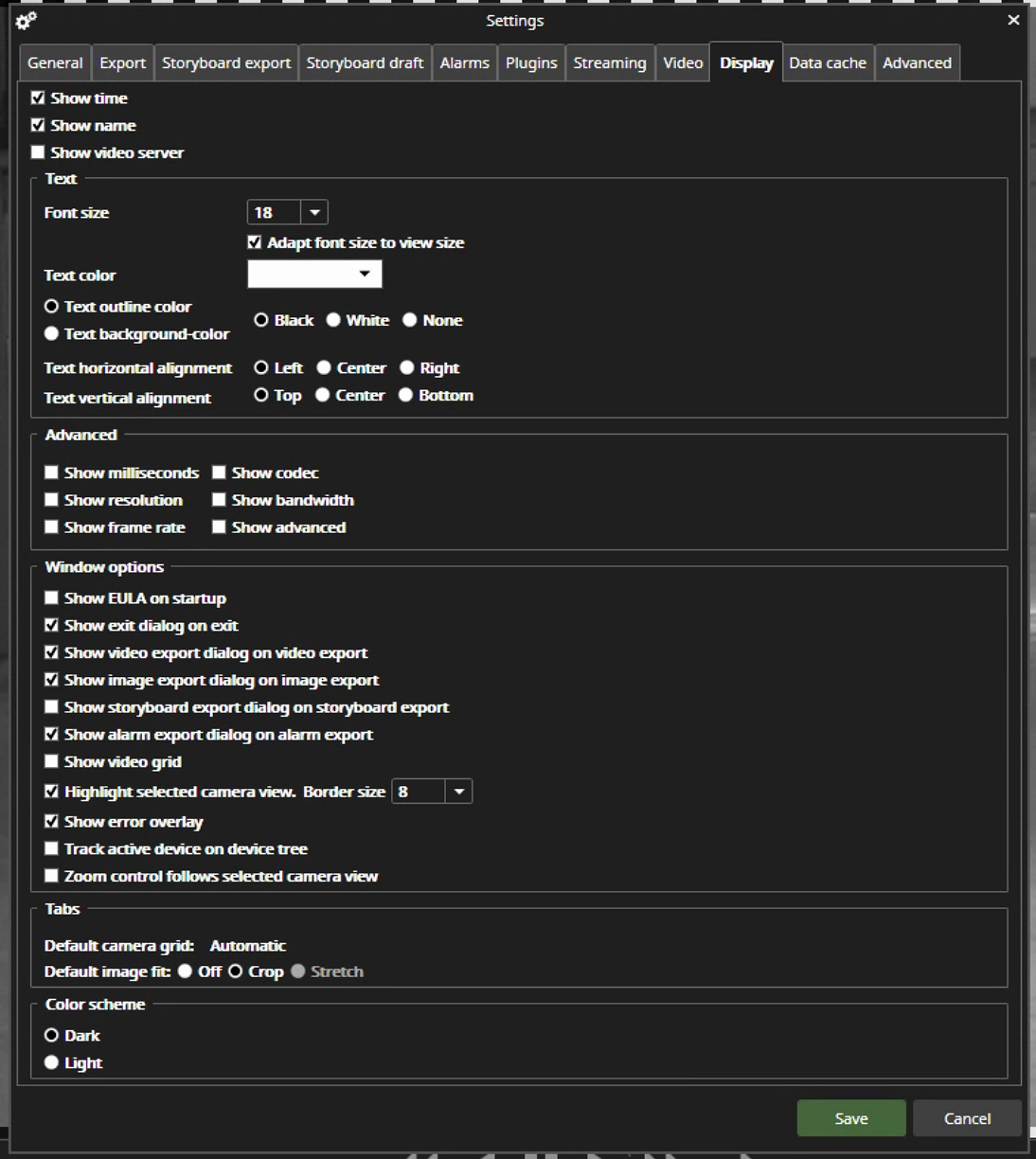

Spotter Display Settings
You can optimize the display based on your requirements under the Display tab.

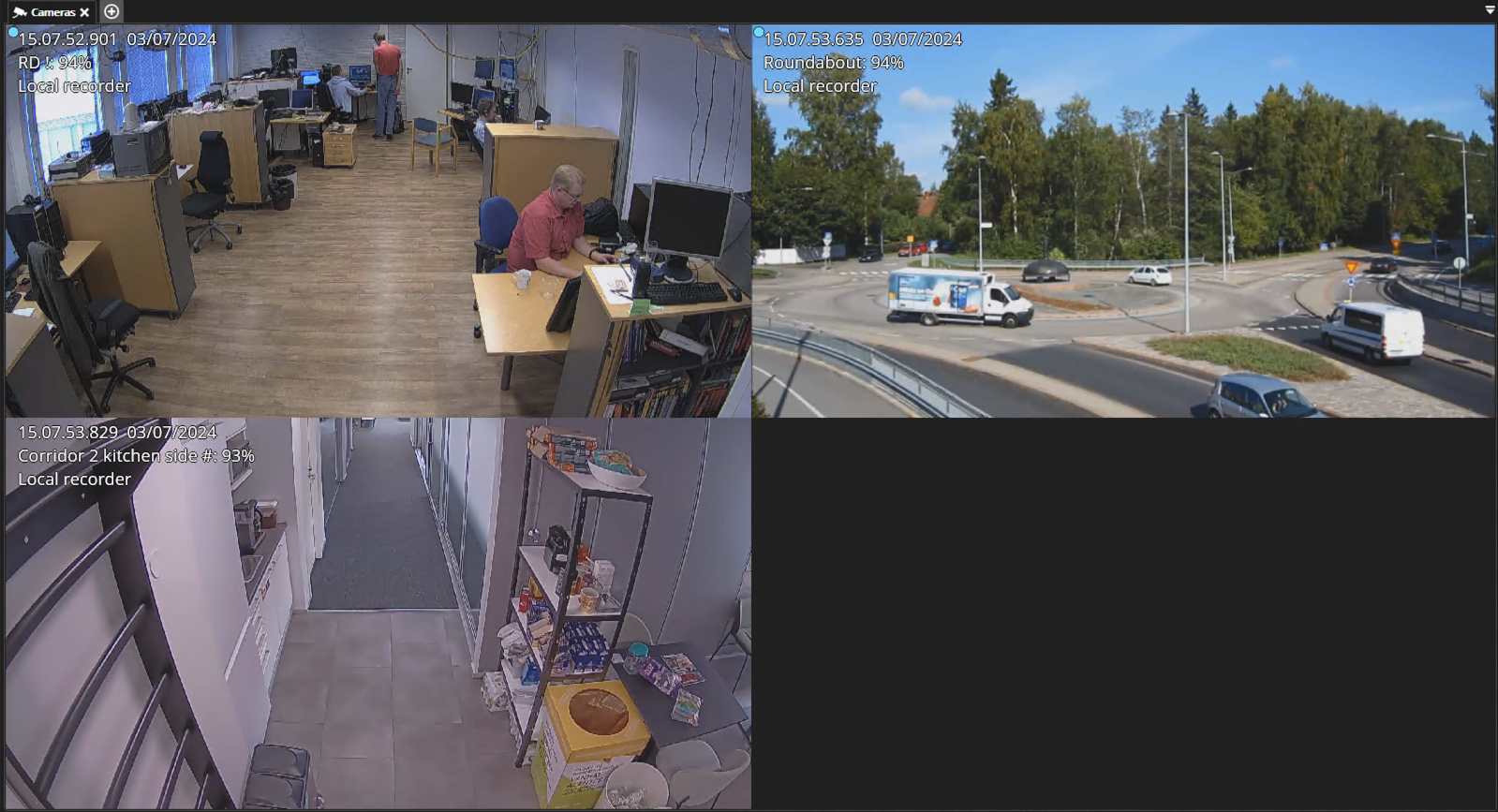

Show on top of the video
Show time
If set, show the image time on top of the video
Show name
If set, show the camera name on top of the video
Show video server
If set, show the VMS Server name on top of the video
Text
Font size
Select the text font size on the video
Adapt font size to view the size
Adapt font size to the best match for view size
Text Color
Select text color from the available color palette
Text outline color and Text background color
Can adjust text lookout
Text horizontal alignment and Text vertical alignment
Can select text position on video
Advanced
Show milliseconds
Show milliseconds with time
Show resolution
Show image resolutions
Show frame rate
Show image framerate
Show codec
Show image compression codec
Show bandwidth
The show displayed video stream bandwidth
Show advanced
Show advanced information can use when analyzing streaming behaviors
Window options
Show EULA on the startup
If selected, show EULA on the startup
Show exit dialog on the exit
Show video export dialog on video export
Show image export dialog on image export
Show storyboard export dialog on the storyboard export
Show video grid
Show video grid borders
Highlight the selected camera view. Border size xx

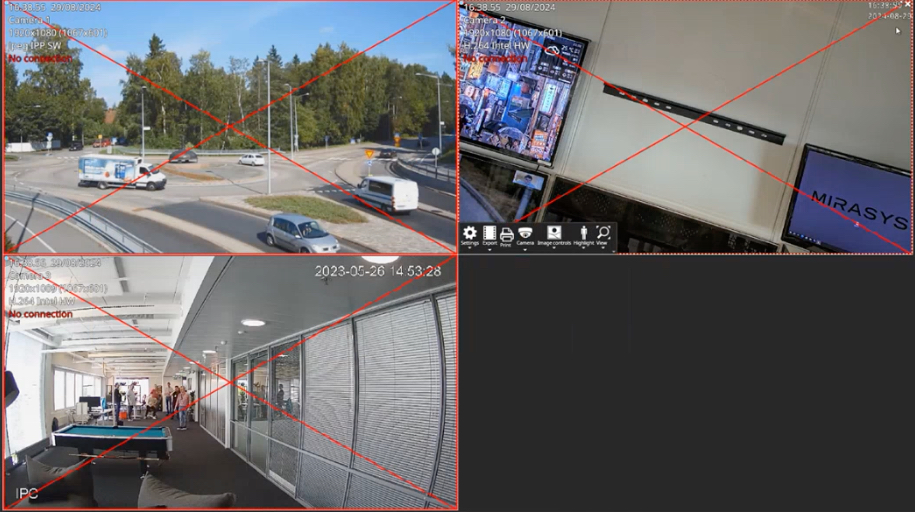

Show error overlay
Operators can see a red cross overlay on the Camera View when there is no video feed or another error, providing a clear visual indicator of issues.
Track active devices on the device tree
If selected, highlight the active device on the device tree. Normally last selected is highlighted.
Zoom control follows the selected camera view
Tabs
Default camera grid
Use the selected camera grid when opening a new tab
Default image fit
Use selected image fit for newly opened cameras
Color scheme
Select a Dark or Light overall color scheme
