PTZ Control and Management

Enabling PTZ Control

  1. Open needed camera to the real-time view

  2. Open camera toolbar

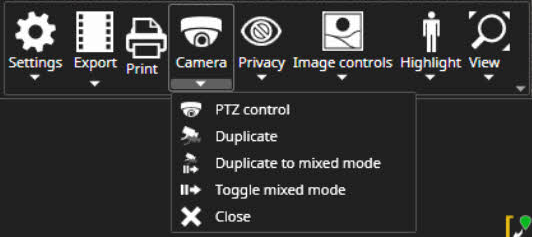

  3. Click Camera and select PTZ control


Controlling PTZ camera

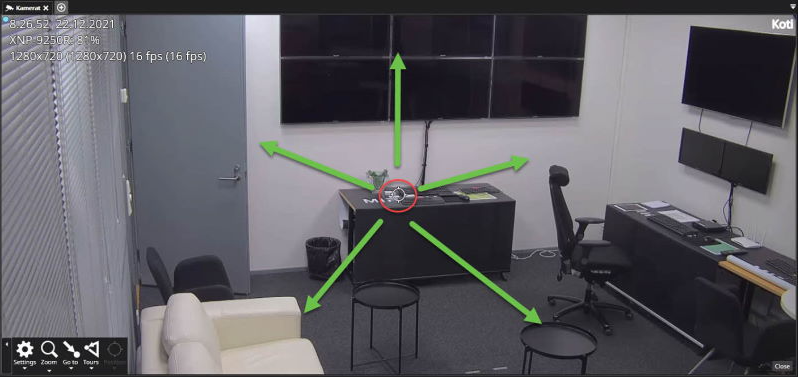

PTZ camera can be controlled with the mouse left button and dragging in the needed direction or with keyboard arrow keys.


Settings

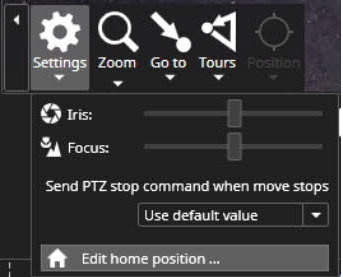

The PTZ settings menu contains iris and focuses slider controls and editing the camera home position.The home position can be selected from the currently saved presets or tours.It is also possible to define how long the camera takes until it returns to the home position and if the switch to the home position is made only if it is not in some other tour or preset position.

Zoom


The zoom settings menu allows controlling the camera zoom. The camera zoom can also be controlled from the keyboard or the mouse wheel.

Creating a preset

  1. Open needed camera to the real-time view

  2. Open camera toolbar

  3. Click Camera and select PTZ control

  4. Control PTZ camera to the needed position

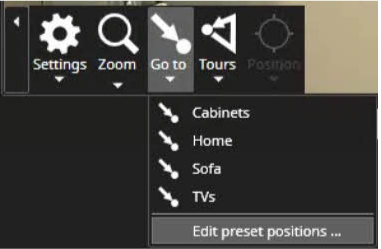

  5. Click Go to and select Edit preset positions

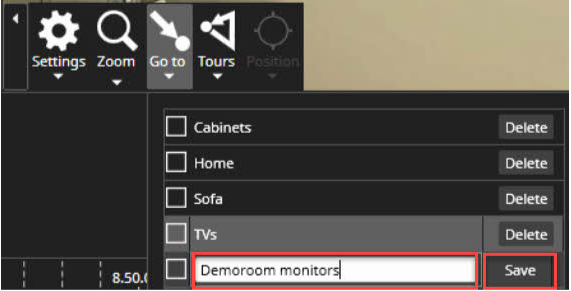

  1. Enter the name of the preset and click Save


Using the presets

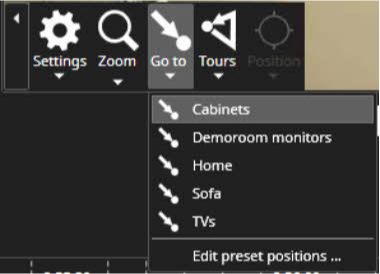

  1. Click Go to and click mouse left button top of the needed preset


Creating a camera tours

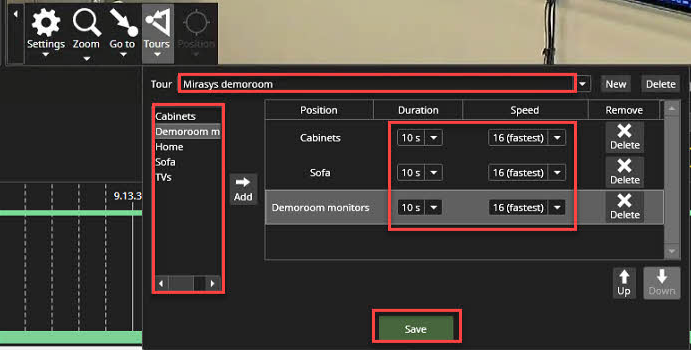

  1. Click Tours and select Edit camera tours


  1. Set the name of the tour

  2. Select presets for the tour

  3. Set duration for each camera

  4. Set transition speed between the presets

  5. Click Save


Using a camera tours

  1. Open needed camera to the real-time view

  2. Open camera toolbar

  3. Click Camera and select PTZ control

  4. Click Tours and activate the needed camera tour


Editing camera tours

  1. Open needed camera to the real-time view

  2. Open camera toolbar

  3. Click Camera and select PTZ control

  4. Click Tours and select Edit camera tours

  5. Select tour from the list

  6. Do modifications and click Save

Deleting camera tours

  1. Open needed camera to the real-time view

  2. Open camera toolbar

  3. Click Camera and select PTZ control

  4. Click Tours and select Edit camera tours

  5. Select tour from the list

  6. Click Delete

  7. Click Save

Setting up PTZ camera home position

  1. Open needed camera to the real-time view

  2. Open camera toolbar

  3. Click Camera and select PTZ control

  4. Click Edit home position

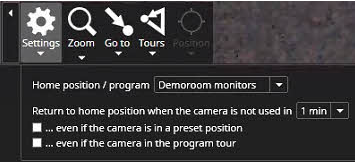

  1. Select the correct home position or program from the list


  1. Define settings for:

    1. Return to home position when the camera is not used in:

    2. ...even if the camera is in a preset position

    3. ...even if the camera in the program tour
