Spotter Device Tree

The Device tree title shows the name of the Main Server that Spotter is connected to.
Below is a search field that can be used to filter the tree contents.
Any text entered in the area can be removed with the "X" control or by pressing the Esc-key.
This also clears all profile folder searches.

The Device tree contains five different types of content that can be opened to the work area.

Profile

The currently selected profile, which includes the cameras and other devices, is the first item.
The shape can be changed from the title menu.
Each profile folder can be searched independently using profile folder search.

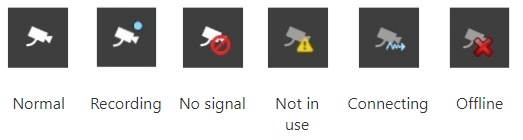

Device states

When the device is in another state, for example, no signal, connecting, and connection, there is an icon on top of the device symbol.

Alarms

If a device is used as a trigger or an alarm action in an active alarm, it has a yellow highlight colour.
The colours for active and ended alarms can be adjusted in the Alarm Visualization Settings
Alarms can also be assigned a custom colour that can be specified for each alarm separately.

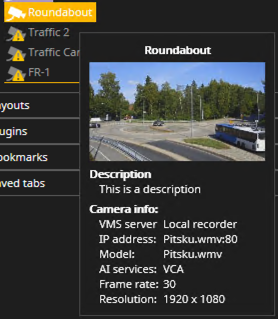

Device name, thumbnail descriptions, and camera info

The name and description are visible in the device tooltip—unique icons for the System Manager Profile Settings devices.

When an Operator has permission to see the Camera info in Spotter, they will see the information chosen in System Manager in the tooltip, indicating what information it is (VMS Server, Server info, IP address, Camera model, AI features used, Resolution, Frame rate settings), and this information will be searchable through the search bar above the device tree in Spotter.

Profile search for folders

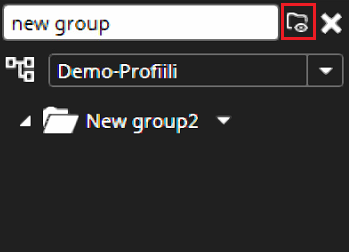

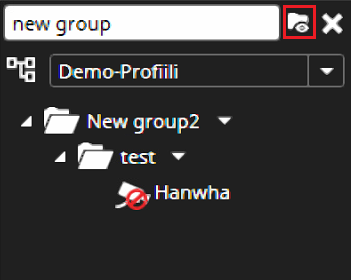

Profile search results can be adjusted with the “Show content” option when searching for folders. When the option is enabled, search results will include folders matching the search term and their full contents. If the option is disabled, only the folders matching the search term will appear (folder content is not displayed).

Show content can be enabled or disabled by clicking the folder icon next to the search bar. When the option is enabled, the icon turns white.



Open or close all folders in Spotter profile tree

All profile folders in the Spotter profile tree can be opened or closed at once to save time. The option Expand All opens all folders, and the option Collapse All closes all folders.

Opening or closing all profile folders:

1. Right-click on top of the profile tree folder

2. Select either Expand All if you wish to open all folders or Collapse All if you wish to close all folders
