VCA - Appear and Disappear

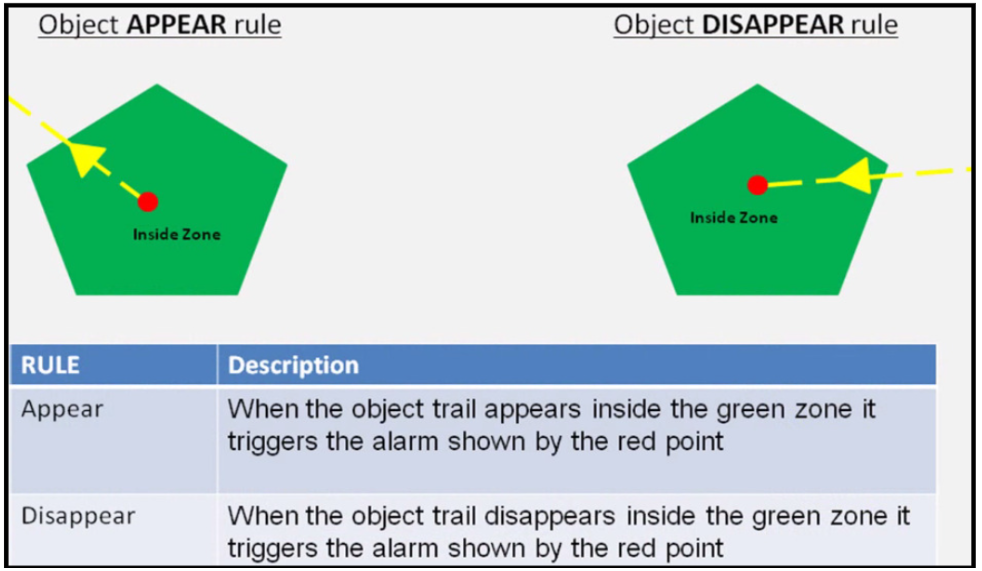

The appear rule detects objects that start being tracked within a zone, e.g. a person who appears in the scene from a doorway.
Conversely, the disappear rule detects objects that stop being tracked within a zone, e.g. a person who exits the scene through a doorway.
Note: The appear and disappear rules differ from the enter and exit rules as detailed in the enter and exit rule descriptions.
![](../../__attachments/2139882067/image-20230627-070523.png?inst-v=86834bbb-50d8-440d-9b6f-3431ba4b14c8)
![](../../__attachments/2139882067/image-20230627-070534.png?inst-v=86834bbb-50d8-440d-9b6f-3431ba4b14c8)

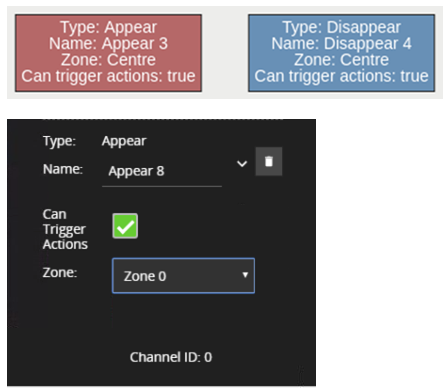

Configuration Appear
Property | Description | Default Value |
Name | A user-specified name for this rule | "Appear #" |
Can Trigger Actions | Specifies whether events generated by this rule trigger actions | Active |
Zone | The zone this rule is associated with | None |
Configuration Disappear
Property | Description | Default Value |
Name | A user-specified name for this rule | "Disappear #" |
Can Trigger Actions | Specifies whether events generated by this rule trigger actions | Active |
Zone | The zone this rule is associated with | None |
