In watchdog settings, you can select what events trigger a report to be sent to e-mail addresses specified in E-Mail Settings
You can select different events for each server.
Alternatively, you can select the same events for all servers by selecting All VMS Servers from the drop-down list.
In addition to e-mail notifications, notifications can be performed through digital outputs.
All event types are written to the watchdog logs, regardless of the e-mail settings.
To add or remove events on the notification list:
-
On the System tab, select Watchdog settings.
-
Mark the Send mail checkbox for each event type for which a notification e-mail should be sent.
-
Click OK.

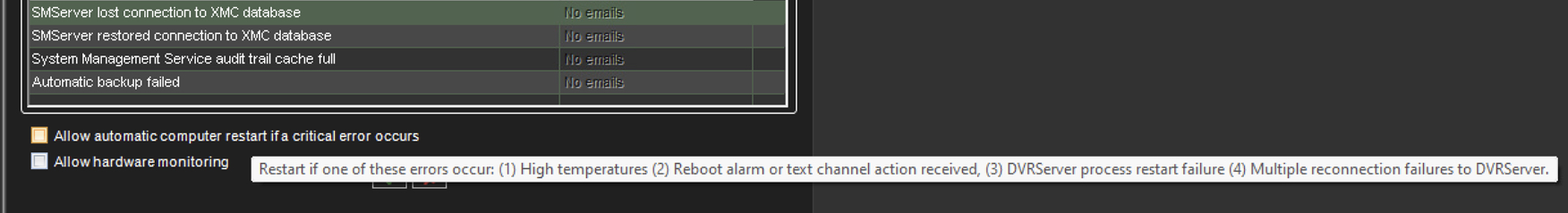

Automatic restart
Tick the box Allow automatic computer restart if a critical error occurs to allow your computer to restart automatically in case of high hardware temperatures, if there is a reboot action received (alarm or text channel), in case of a recorder process restart failure or multiple reconnection failures to the recorder. The computer will not be restarted more than once a day.
You can also allow hardware monitoring if needed.
Digital output notifications
In addition to e-mail notifications, notifications can be performed through digital outputs.
Notifications through digital output are created as server-specific; you need to select a specific server from the VMS Server drop-down list.
To set a digital output notification:
-
On the System tab, select Watchdog settings.
-
Select a server from the VMS Server drop-down list. As digital output signals are server-specific, you cannot select All VMS Servers.
-
Click on an event.
-
Select the digital output channel you want to use from the In Use drop-down menu.
-
If you want to send a pulse signal to the output channel, mark the Pulse checkbox and select the pulse length with the slider.
-
Click OK.
